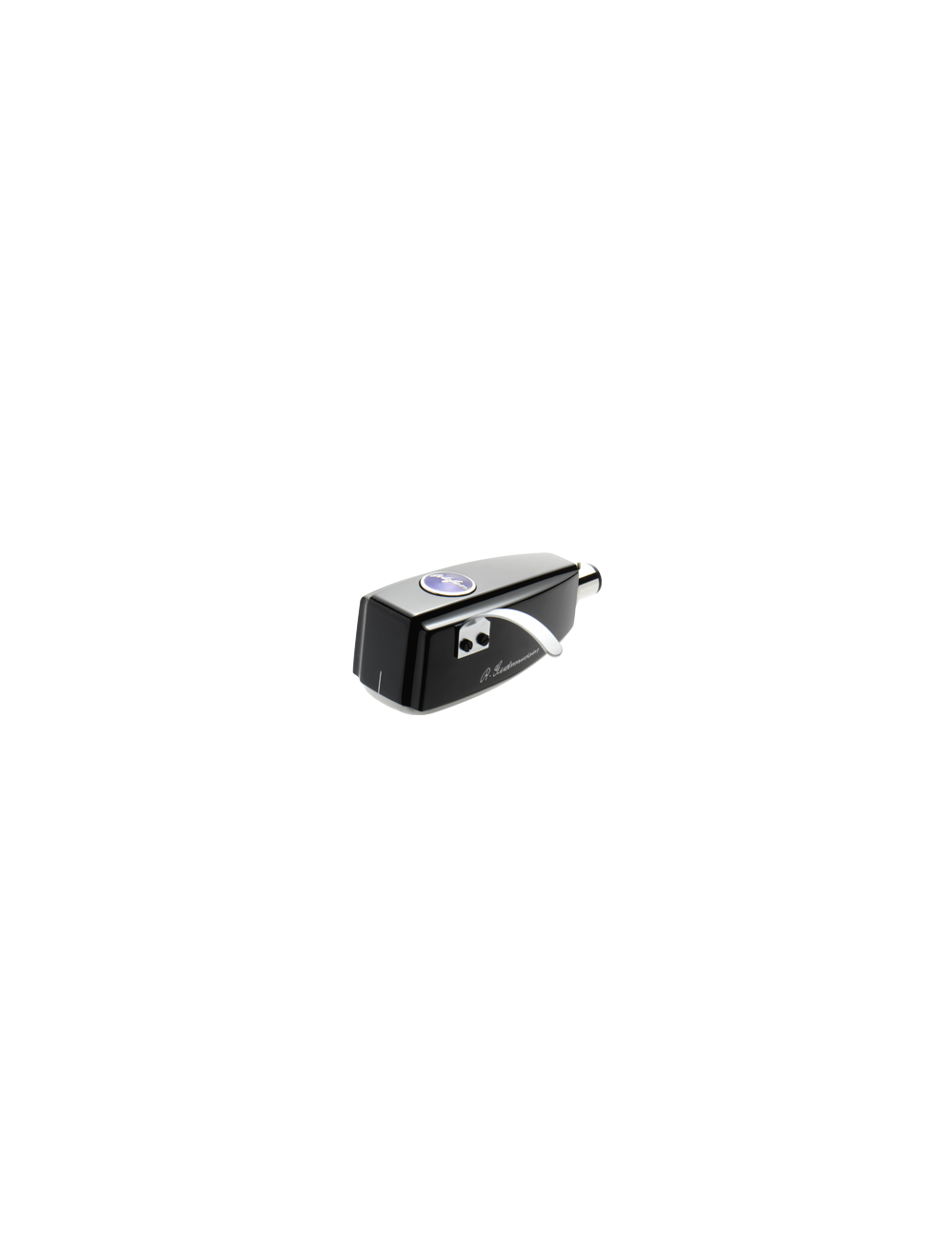

Ortofon SPU Meister Silver GM MK II

The SPU Meister Silver GM MkII is an SPU Moving Coil cartridge that has been improved on coil winding material, stylus and magnet.

The cartridge has been outfitted with high purity multi-conductor 6–nines Silver wire (of a purity of 99,9999 %) for a more open and revealing high end presentation.

The nude elliptical stylus tip mass has been decreased by a factor of more than 50%, resulting in increased tracking ability and reproduction of microdynamic detail.

The generator system has been revised produce a slightly higher output to ensure compatibility with a wider range of moving coil transformers and active MC preamplifiers.
16 890 kr
ELLER

Ortofon SPU Meister Silver GM MK II

Detaljer

Output voltage at 1000 Hz 5cm/sec 0,3 mV
Channel balance at 1 kHz < 1 dB
Channel separation at 1 kHz > 20 dB
Channel separation at 15 kHz > 10 dB
Frequency range at -3 dB 20-25 kHz
Frequency response 20 - 20 kHz  +2 / -1 dB
Tracking ability at 315 Hz at recommended tracking force *) >  70 μm
Compliance, dynamic, lateral 8 μm/mN
Stylus type Nude elliptical
Stylus tip radius  r/R 8/18 μm
Equivalent stylus tip mass 0,45 mg
Tracking force range 3.0-5.0 g (30-50 mN)
Tracking force recommended 4.00 g (40 mN)
Tracking angle 20º
Internal impedance, DC resistance 3.1 Ohm
Recommended load impedance > 10 Ohm
Coilwire material Silver, 6-nines
Cartridge body material Grinded wood
Cartridge colour Silver/Black
Cartridge Weight 31.5 gram

Mer information

Artikelnummer SPU Meister Silver GM MK II
Tillverkare Ortofon
Weight 0.0000
Längd Nej
Djup Nej
Garanti 2 år
Färg Svart
Anslutningar Nej
