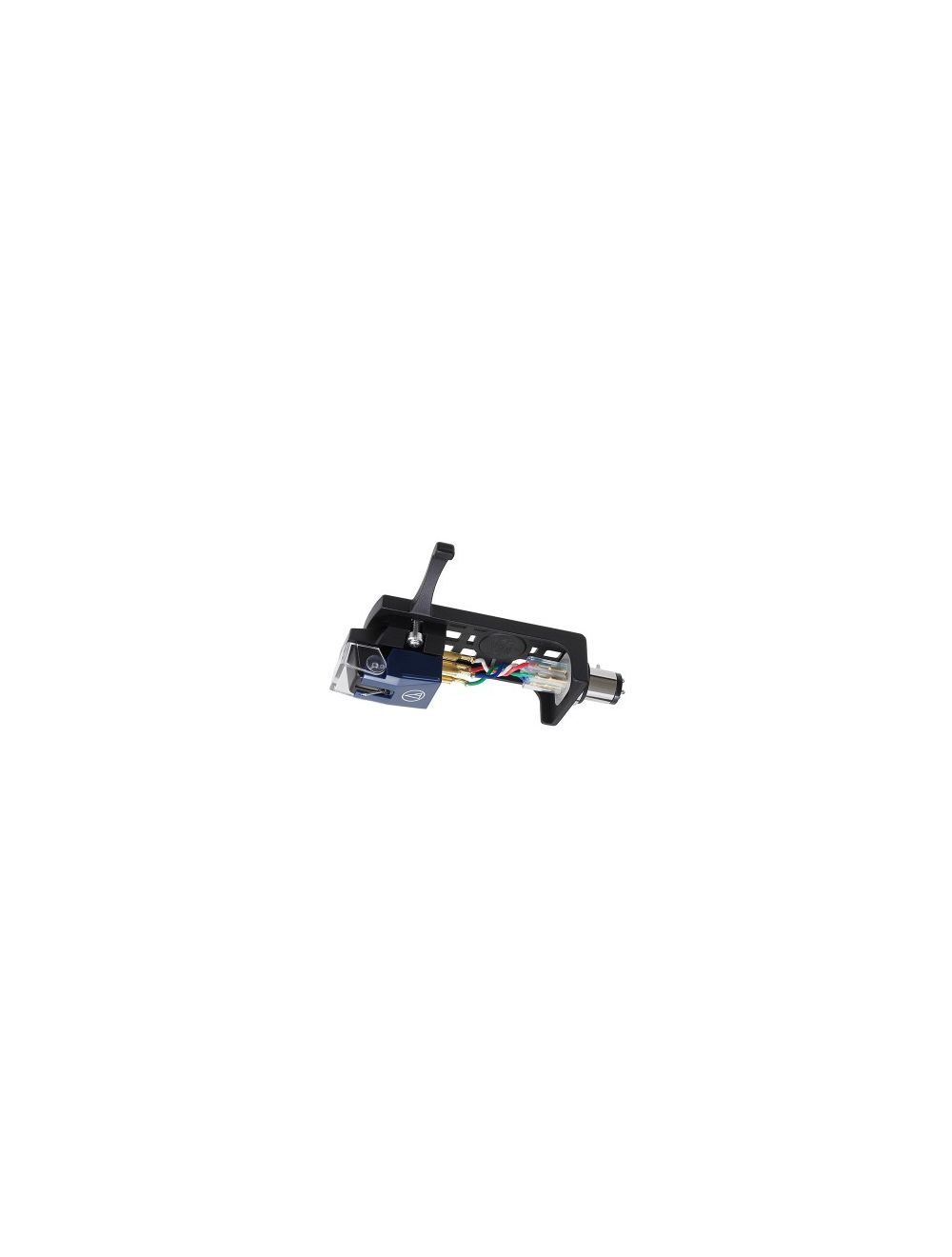

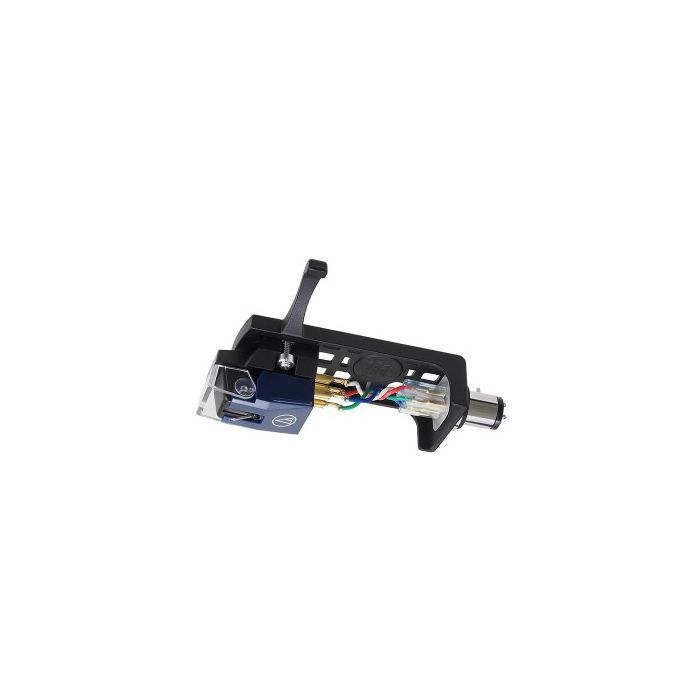

Audio Technica VM520EB/H

Audio-Technicas nya Dual VM Cartridge-serie är fylld med pick-up:s som levererar grym prestanda till ett bra pris, ett enkelt sätt att uppgradera din gamla skivspelare eller för att ge din nuvarande skivspelare ett lyft ljudmässigt!


HS10 headshell ingår.

1 540 kr
ELLER

Audio Technica VM520EB/H

Detaljer

DUAL MOVING MAGNET STEREO CARTRIDGE WITH HEADSHELL

Standard elliptical stylus model with an elliptical bonded stylus that reduces tracing distortion and allows for higher sound reproduction accuracy. Pre-assembled with a lightweight aluminium AT-HS10 headshell, the user can enjoy a hassle-free set-up.

  • Aluminium cantilever
  • Para-toroidal coils improve generating efficiency
  • Centre shield plate between the left and right channels reduces crosstalk
  • Pre-assembled with a lightweight aluminium headshell (AT-HS10) for a quicker, easier set-up


AUDIO-TECHNICA’S INTERNATIONALLY-PATENTED DUAL MAGNET DESIGN REPLICATES THE STRUCTURE OF THE CUTTER HEAD.

Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.

Para-toroidal generating system

Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.

Centre shield plate reduces crosstalk

A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.



PREASSEMBLED WITH HS10 HEADSHELL

VM520EB cartridge is fitted onto a die cast aluminium HS10 Headshell suitable for 4-pin turntable arms.

ELLIPTICAL BONDED STYLUS

Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.

Type VM Type
Mounting 1/2” centres
Frequency Response 20 - 23,000Hz
Channel Separation 27dB (1kHz)
Output Channel Balance 1.5dB (1kHz)
Output Voltage 4.0mV (1kHz, 5cm/sec.)
Vertical Tracking Angle 23˚
Vertical Tracking Force Range 1.8 – 2.2g (2.0g standard)
Stylus Shape Elliptical Bonded
Stylus Size 0.3 x 0.7 mil
Stylus Construction Bonded Round Shank
Cantilever Aluminium Pipe
Coil Impedance 2,700Ω (1kHz)
Static Compliance 35 x 10-6 cm/dyne
Dynamic Compliance 8 x 10-6 cm/dyne (100Hz)
Recommended Load Impedance 47,000Ω
Recommended Load Capacitance 100 – 200pF
Weight 6.4g
Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
Replacement Stylus VMN20EB
Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
