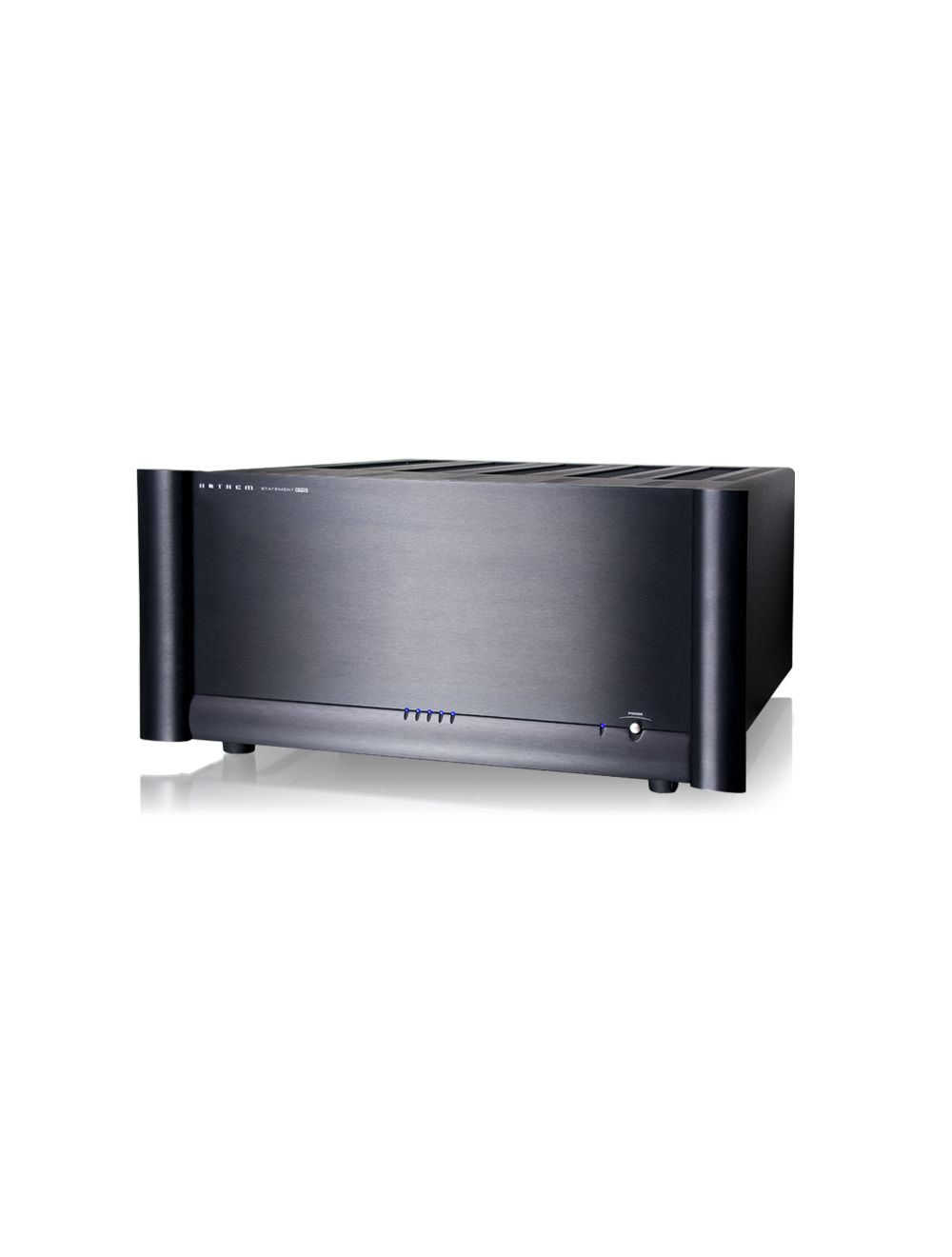

Anthem Statement P5

Inputs

5 Single-Ended, 5 Balanced, 1 Relay Trigger (3.5 mm Mono Jack)

Outputs

5 Pairs Speaker Binding Posts, 1 Relay Trigger (3.5 mm Mono Jack)

THD+N (225 W Into 8 Ω)

0.0007% at 1 kHz, 0.008% at 20 kHz

IMD

0.00019% (CCIF, 325 W into 8 Ω)

POWER BANDWIDTH

10 Hz to 150 kHz
(+0 -3 dB, 325 W into 8 Ω)

FREQUENCY RESPONSE

20 Hz to 20 kHz (+0 -0.15 dB),
5 Hz to 100 kHz (+0 -2 dB)

INPUT SENSITIVITY (RCA And XLR 0 DB Inputs)

1 Vrms in for 28.3 Vrms out
(100 W into 8 Ω)

INPUT IMPEDANCE

18 kΩ (RCA), 22 kΩ (XLR)

DAMPING FACTOR

>600 at 20 Hz, 400 at 1 kHz (ref. 8 Ω)

S/N RATIO

125 dB, A-weighted (ref. 325 W)

CROSSTALK (Between Any Two Channels)

-140 dB (20 Hz), -80 dB (20 kHz)

VOLTAGE GAIN

29 dB

SLEW RATE

40 V/µs

SWITCHES

Front Panel

Power (On/Off)

Rear Panel

On/Off Modes (Trigger, Manual, Auto), Inputs (RCA, XLR, XLR -6dB)

POWER OUTPUT
(Per channel, continuous RMS, 20 Hz to 20 kHz, <0.1% THD, one or all channels driven.)

Impedance	8Ω		4Ω		2Ω
# Of Channels Driven	1	All	1	All	1	All
	325 W	325 W	500 W	500 W	675 W	675 W

Statement P2 and P5 amplifiers are stable into any impedance down to a short circuit at full output.

POWER REQUIREMENTS

SUPPLY VOLTAGE

105 to 130 V, 60 Hz

POWER CONSUMPTION

2 x 1800 W

DIMENSIONS

Height

9-3/8 inches (23.8 cm) including feet

Width

Faceplate 19-1/4 inches (49 cm)
Chassis 17-1/4 inches (43.8 cm)

Depth

22-1/2 inches (57.2 cm) including handles

Weight (Unpacked)

130 lb (59 kg)

SKU	P5
Märke	Anthem
Weight	0.000000
Garanti	1 år
Färg	Svart
